Model Description

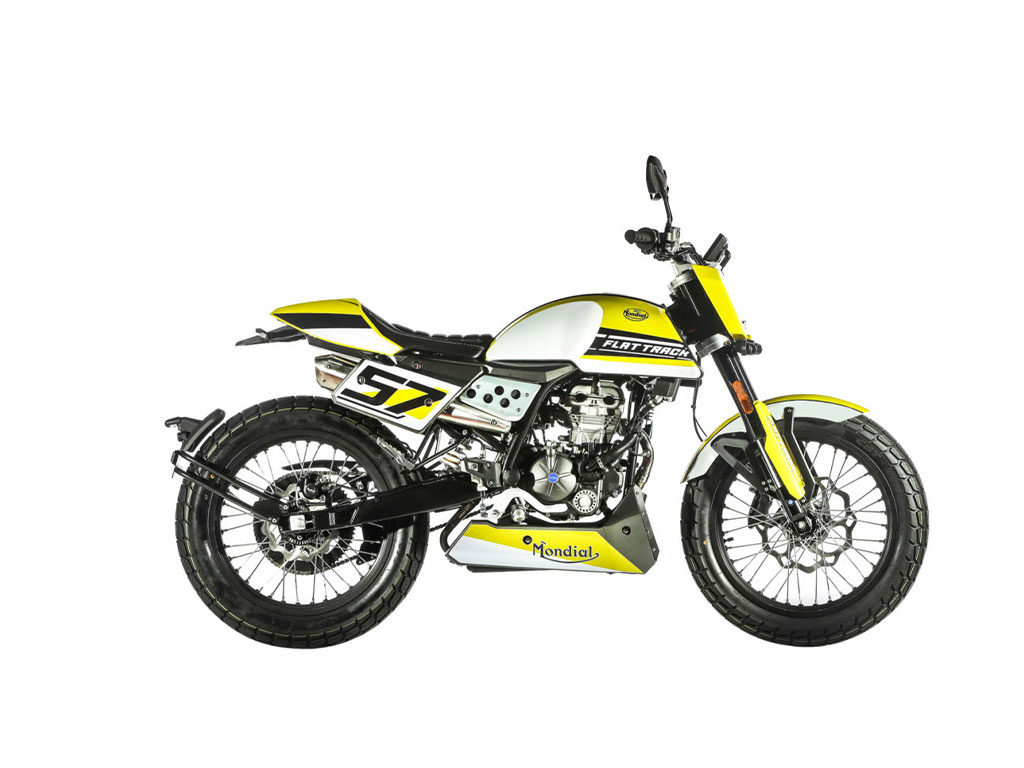

Mondial Flat Track 125 Overview

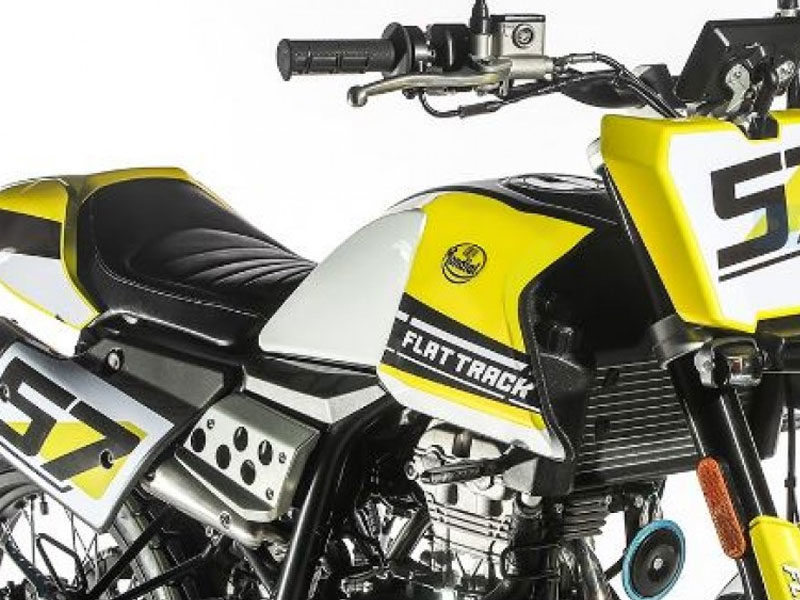

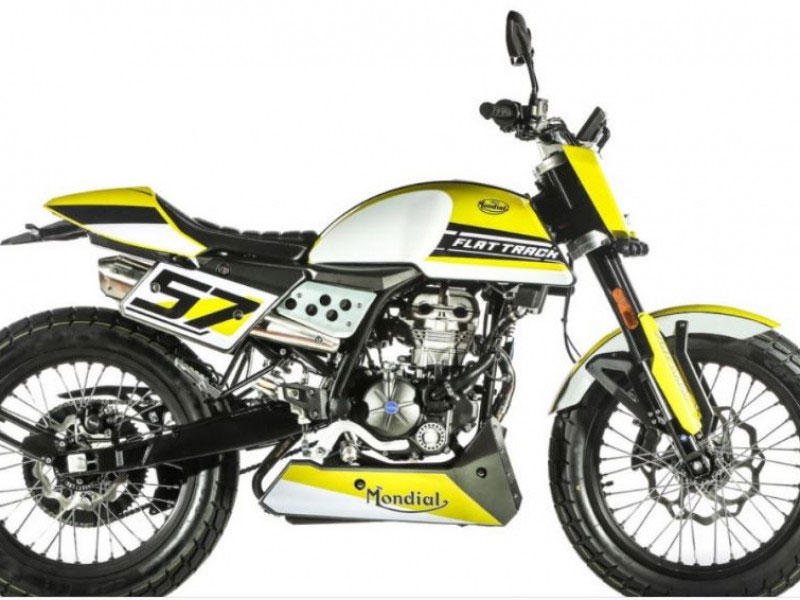

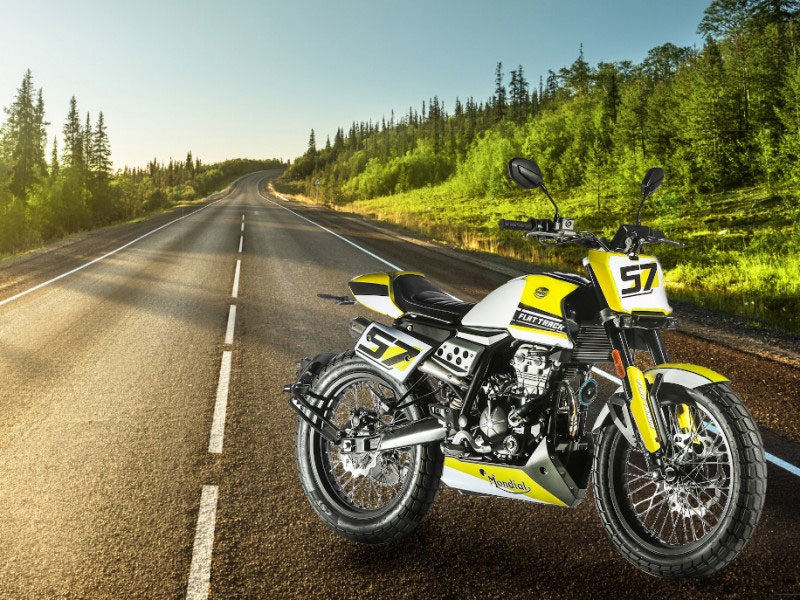

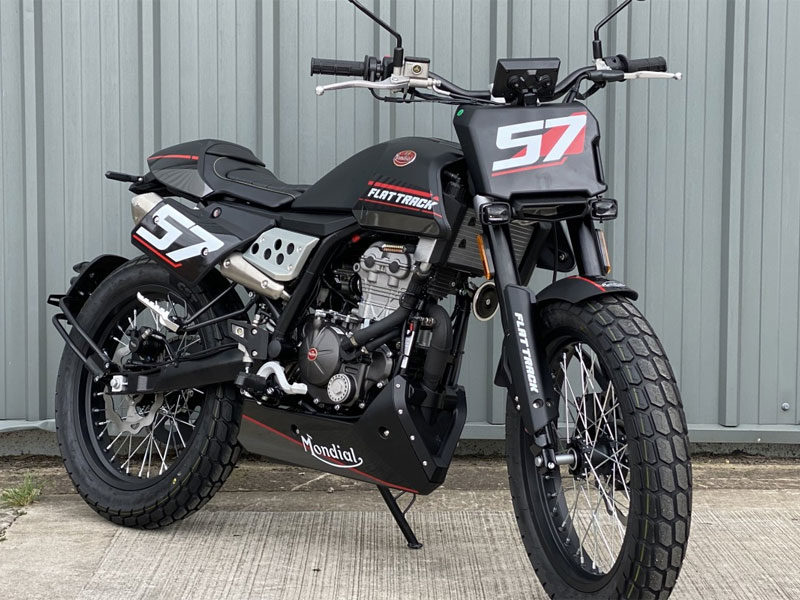

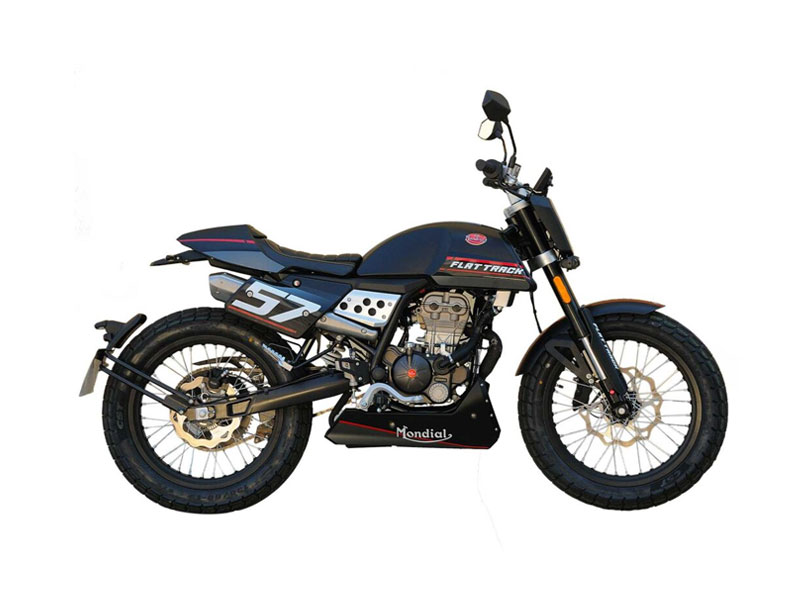

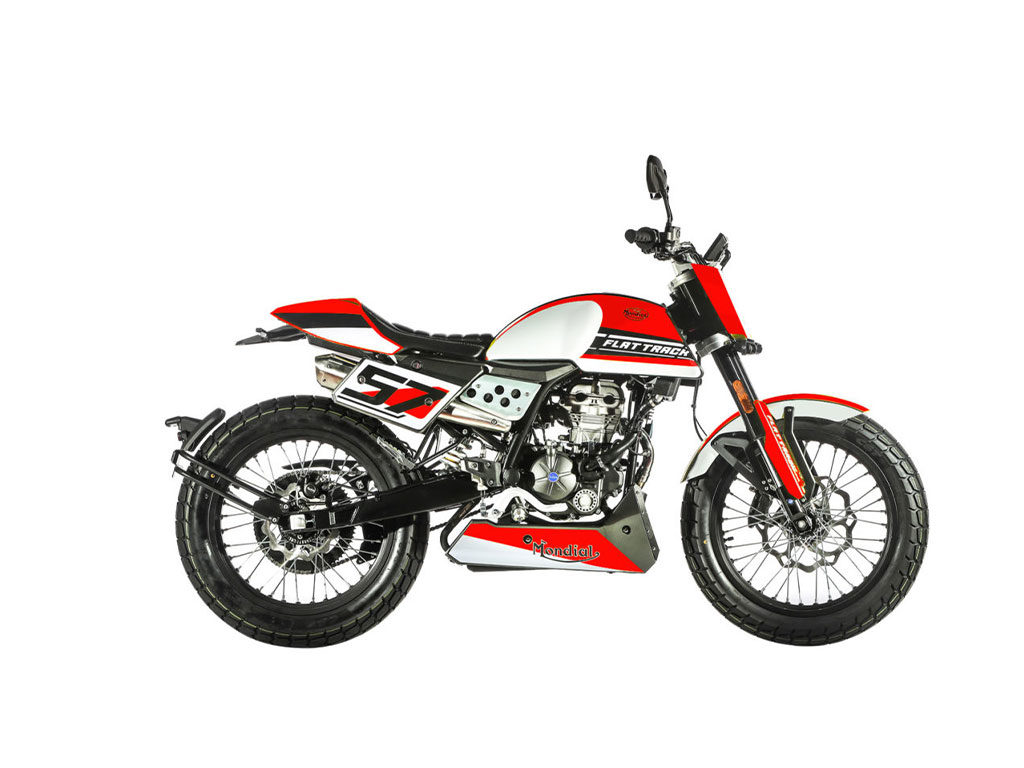

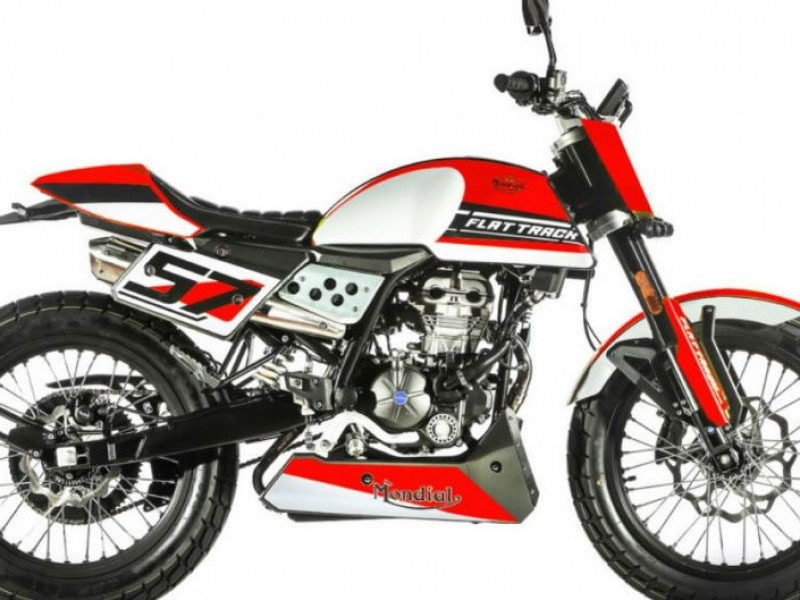

Imagine the thrill of riding through dirt and mud on a sleek, modern motorbike that embodies the spirit of the racing flat track style. Introducing our unique Flat Track bike – perfect for those who crave an instinctive and primitive connection to the earth. Our bike features 19-inch spoke wheels with dual-sport tire treads, because where’s the fun in smooth surfaces? With minimal lighting that accentuates the design, the engine takes centre stage, with a stainless-steel double exhaust running under the seat. Powered by a single cylinder, 4-stroke DOHC engine with 4 valves, this bike boasts a displacement of 124cc and a compression ratio of 12:1 The Carter umido lubrication system and liquid cooling ensure optimal performance, while the EFI intake system and electric starting system make it easy to rev up and go. The 6-speed transmission and 9.5L fuel tank give riders plenty of speed and endurance, while the front suspension with Ø 40mm USD fork and rear suspension with single absorbers provide a smooth ride. The bike weighs 133kg and can accommodate two people with a load capacity of 2 people. Our Flat Track bike features a 4-piston radial calliper ABS/CBS 280mm front brake and a 1-piston floating calliper ABS/CBS 240mm rear brake. The front and rear wheels measure 2.15×19″ and 3.00×19″, respectively, with tire sizes of 120/80 x 19″ and 130/80 x 19″. At 2083mm in length, 810mm in width, and 1140mm in height, with a wheelbase of 1380mm and ground clearance of 205mm, this bike is the perfect size for those seeking a thrilling off-road adventure. The seating position height is 870mm, ensuring a comfortable and commanding ride. And while it may appear to be a single-seater, our Flat Track bike actually comes with a hidden second seat under the rear body cover – perfect for accommodating two riders. Experience the ultimate in fast and controversial riding style with our unique Flat Track bike.

Model Specification


  • Engine
    ENGINE TYPE

    Single Cylinder, 4 stroke, DOHC, 4 valves

    DISPLACEMENT

    124.2cc

    BORE X STROKE

    58mm x 47mm

    COMPRESSION RATIO

    12.0:1

    RATED OUTPUT

    11.0kW/9750 r/min

    MAX. TORQUE

    10.5N.m/9750 r/min

    LUBRICATION

    Wet Sump

    FUEL SUPPLY

    Electronic Fuel Injection

    EXHAUST SYSTEM

    Euro 5 Compliant

    CERTIFICATION

    Euro 5

    CLUTCH

    Wet, Multiple Disc

    GEARBOX

    6 Speed

    FINAL DRIVE

    Chain

    IGNITION

    TCI

    COOLING SYSTEM

    Liquid Cooled

    BATTERY

    12V

    SPARK PLUG

    STARTING

    Electronic

  • Frame
    FRAME

    Diamond

  • Suspension
    FRONT SUSPENSION

    Ø 40 mm USD fork

    REAR SUSPENSION

    Shock absorbers

  • Brakes
    FRONT BRAKE

    4 pistons radial caliper 280mm disc

    REAR BRAKE

    1 piston floating caliper 220mm disc

  • Wheels
    FRONT RIM TYPE

    Alloy Rim Steel Spokes

    FRONT RIM DIMENSION

    REAR RIM TYPE

    Alloy Rim Steel Spokes

    REAR RIM DIMENSION

    3,00×19?

    FRONT TYRE

    120/80 x 19”

    REAR TYRE

    130/80 x 19'

  • Dimensions
    LENGTH

    2072mm

    WIDTH

    798mm

    HEIGHT

    1108mm

    GROUND CLEARANCE

    175mm

    UNLADEN WEIGHT

    140kg

    WHEELBASE

    1360mm

    SEAT HEIGHT

    846mm

  • Performance
    USABABLE TANK VOLUME

    9.5 Ltr
