Model Description


Mondial Imola 125 Overview

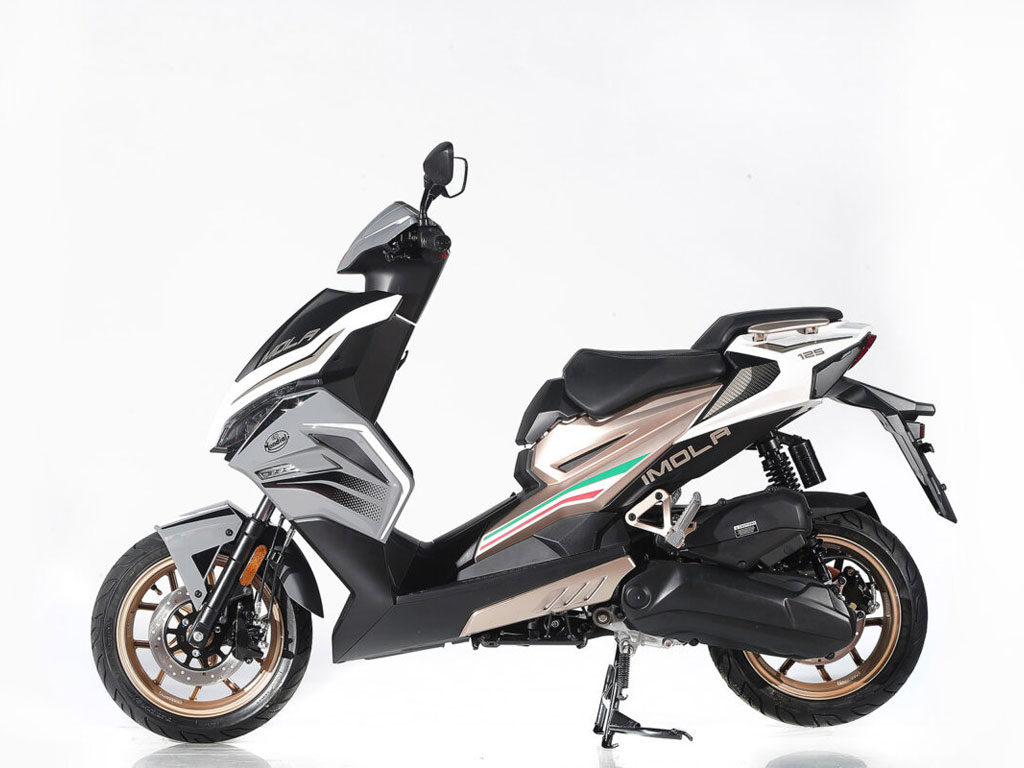

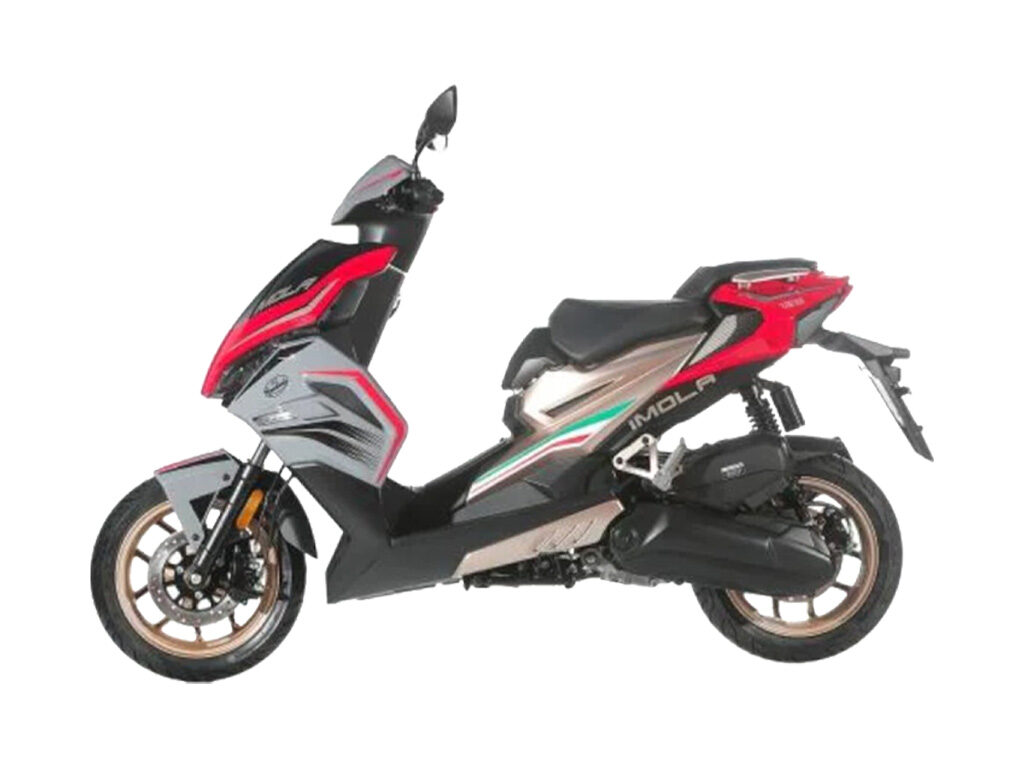

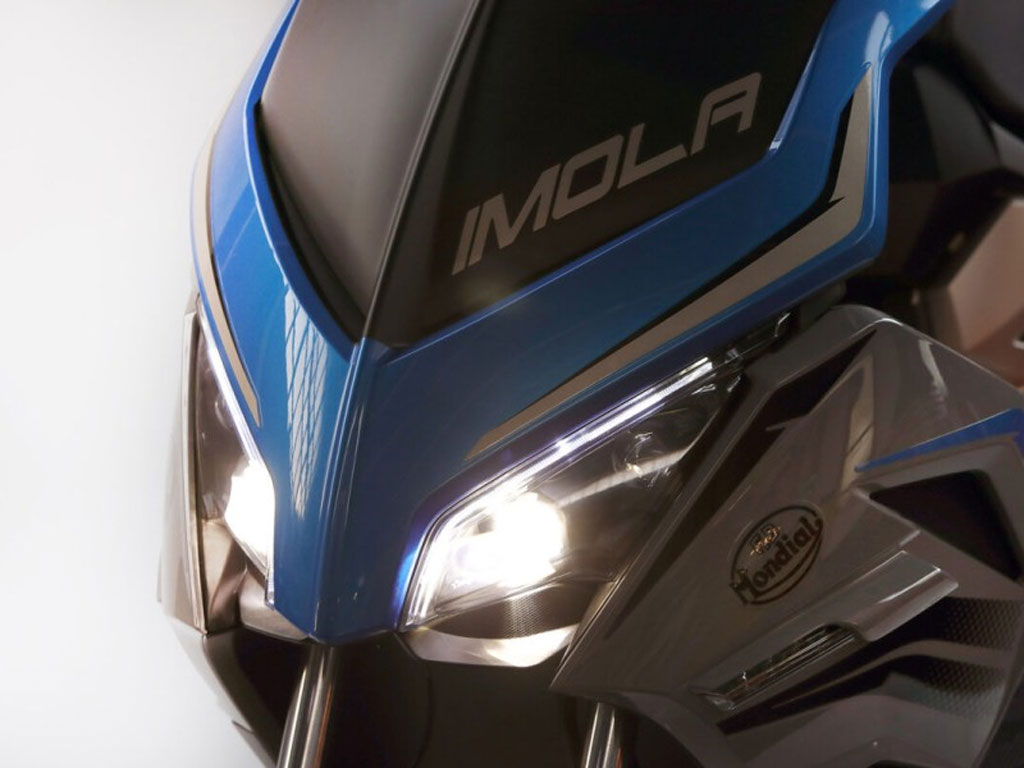

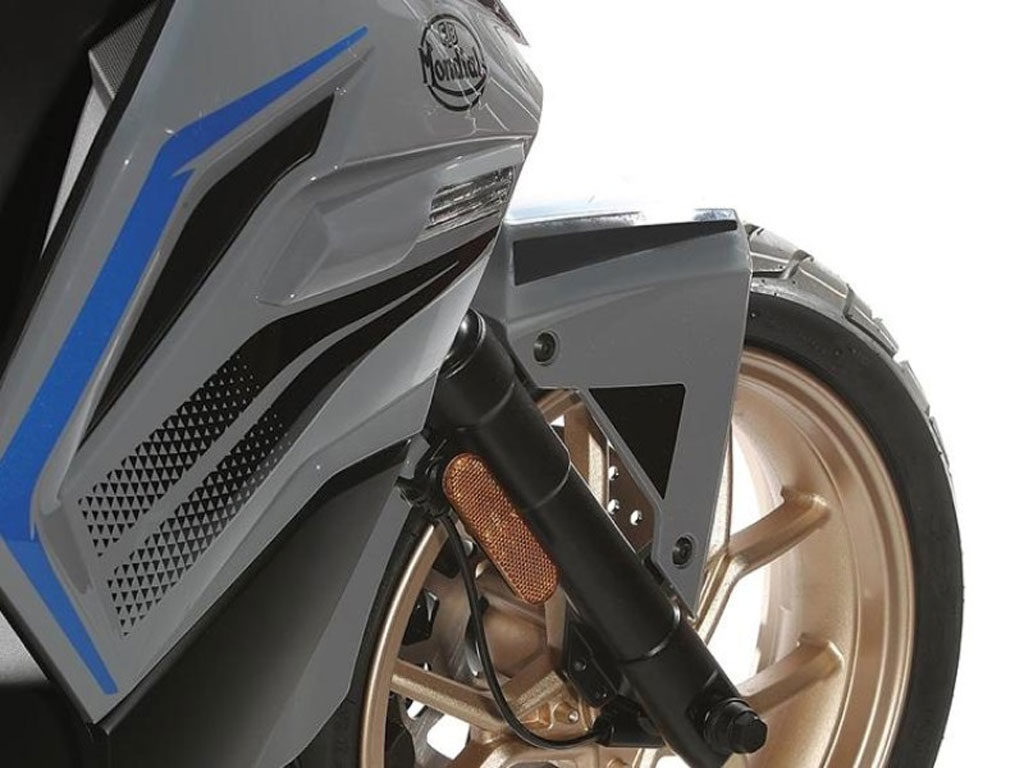

FB Mondial, the renowned brand with ten World Speed Championship titles, has made its foray into the scooter market with its sporty Imola 125 model, named after the famous Italian racing circuit. This scooter boasts a high level of equipment, including full LED lighting and a proximity smart key for easy activation. The Imola 125 boasts a sharp and aggressive design, with a headlight assembly comprising four poli ellipsoidal optics LED modules that resemble competition motorcycles. The blue, red, or silver colours of the Italian flag adorn its sides, while air inlet nozzles on the rear sides and front shield extensions add to its sporty appeal. The Imola 125’s rear lighting features a circular LED light guide pilot that creates a three-dimensional effect, reminiscent of the exhaust outlet under the rear tail. The scooter’s engine is cooled by forced air and features a four-valve cylinder head with double overhead camshaft DOHC, typical of sports models. It delivers a maximum power of 9 hp at 7,500 rpm and a torque of 9.1Nm at 6,000 rpm. The Imola 125 has a single oleopneumatic rear shock absorber with an independent gas bottle and uses a 29mm fork for the front axle. It rolls on 13-inch wheels with 120 / 60-13 and 130 / 60-13 low-profile sports tires and has 220mm disc brakes with CBS combined operation and a 1-piston rear and 3-piston front calliper. The FB Mondial Imola 125 features a set of three sports-style watches, with the speedometer occupying the central position and including independent indicator lights, high beam, and injection. The LCD screens on either side display the fuel level with the trip meter and a graphic voltmeter with the total odometer. One of the stand out features of the Imola 125 is its proximity smart key, which enables easy activation without removing the key from your pocket. The key also serves as a lock to close the steering turn, a search tool for locating the vehicle in a busy parking lot, and an inductive key to activate the ignition control. Finally, the Imola 125 incorporates typical scooter features such as a hook on the leg rest to hang bags, centre and side stands, folding passenger footrests, and a low main cargo compartment that can accommodate a full-face helmet. LED Projector Headlight – LED Tail Light – LED Indicators – Disc Brakes Front & Rear – 13 Inch Gold Alloy Wheels – Digital Display – Sports Styling – Underseat Storage – Keyless Ignition **”Fratelli Boselli Mondial, which enjoyed tremendous success in the 1950s, made a comeback in 2014 and now expands its range with a modern sports-style scooter model, the first of its kind in the current lineup. The Imola 125 takes its name from the Imola circuit, where FB Mondial secured its first 125cc World Speed Championship title with “Nello” Pagani in 1949, followed by Tarquinio Provini in the 250cc category in 1955. The Imola circuit, also known as Autodromo Dino Ferrari in memory of the founder’s son, is famous for its rich legacy in both the automotive and motorcycle industries. The circuit hosted the “200 miles of Imola” in the 1970s, and the last Grand Prix of the World Speed Championship was held there in 1997.”**

Model Specification


  • Engine
    ENGINE TYPE

    Single cylinder four stroke, forced air cooling, DOHC double overhead camshaft, four valves and electric start

    DISPLACEMENT

    125

    BORE X STROKE

    COMPRESSION RATIO

    10:1

    RATED OUTPUT

    9 HP

    MAX. TORQUE

    9.1 Nm at 6000 RPM

    LUBRICATION

    FUEL SUPPLY

    Electronic Injection

    EXHAUST SYSTEM

    Euro 5 Compliant

    CERTIFICATION

    Euro 5

    CLUTCH

    centrifugal - automatic

    GEARBOX

    Automatic

    FINAL DRIVE

    Belt

    IGNITION

    electronic

    COOLING SYSTEM

    Air Cooled

    BATTERY

    SPARK PLUG

    STARTING

    Electric

  • Frame
    FRAME

    Multitubular in steel tube

  • Suspension
    FRONT SUSPENSION

    29mm inverted fork

    REAR SUSPENSION

    Oil-pneumatic monoshock

  • Brakes
    FRONT BRAKE

    220 mm disc with double piston caliper

    REAR BRAKE

    220 mm disc with CBS single piston caliper

  • Wheels
    FRONT RIM TYPE

    Alloy

    FRONT RIM DIMENSION

    REAR RIM TYPE

    Alloy

    REAR RIM DIMENSION

    13 Inch

    FRONT TYRE

    120 / 60-13MC Tubeless

    REAR TYRE

    130 / 60-13MC Tubeless

  • Dimensions
    LENGTH

    1880mm

    WIDTH

    685mm

    HEIGHT

    1160mm

    GROUND CLEARANCE

    UNLADEN WEIGHT

    116kg

    WHEELBASE

    1340mm

    SEAT HEIGHT

    780mm

  • Performance
    USABABLE TANK VOLUME

    5 L
