Model Description


Mondial SMX Motard 125 ABS Overview

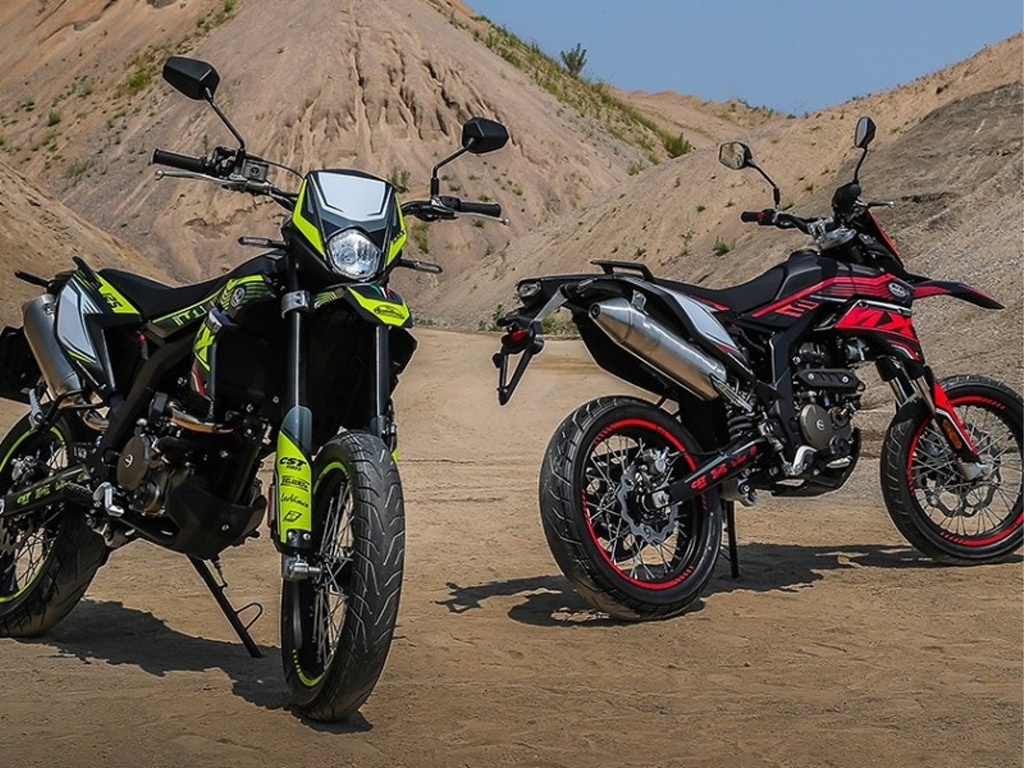

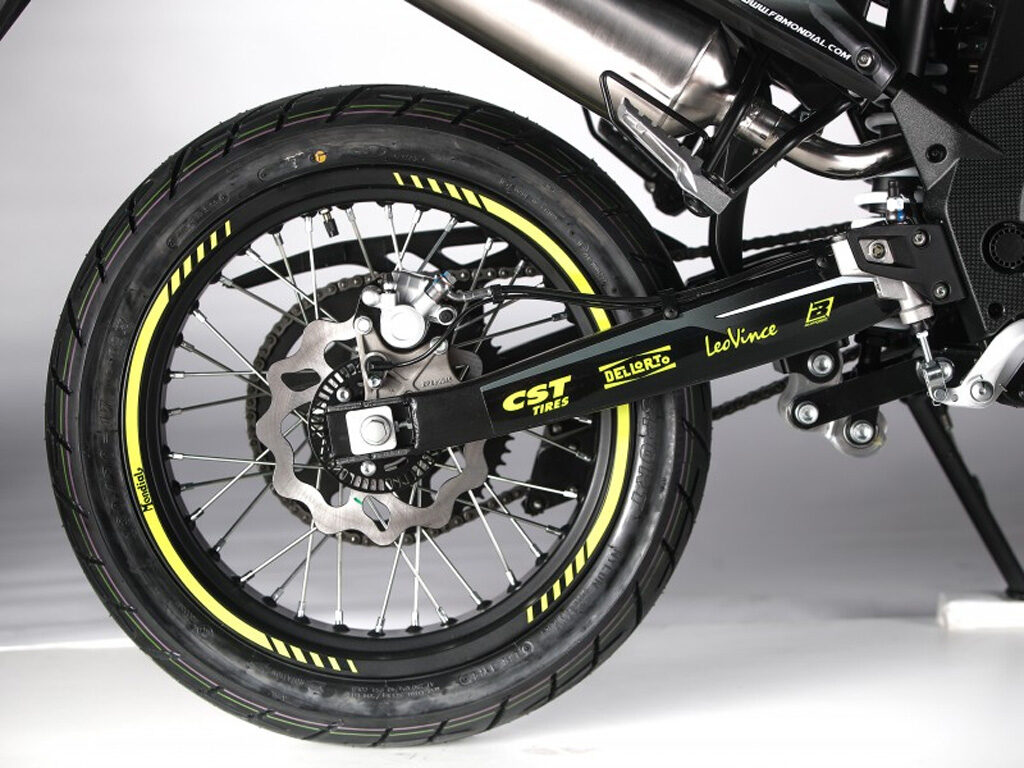

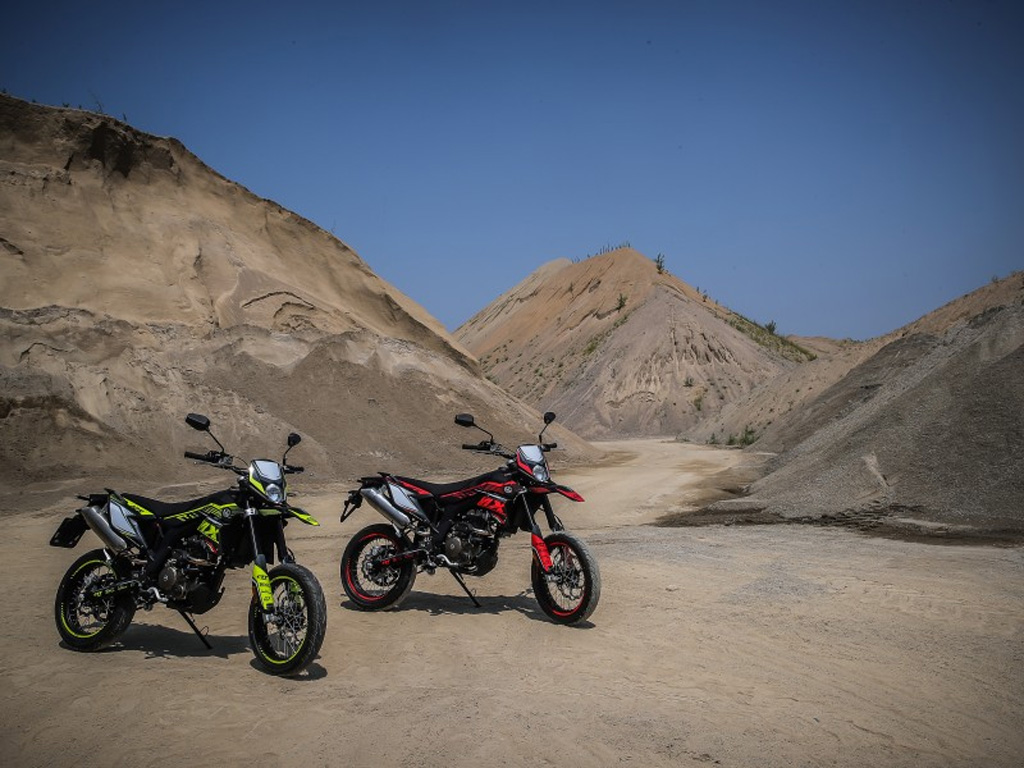

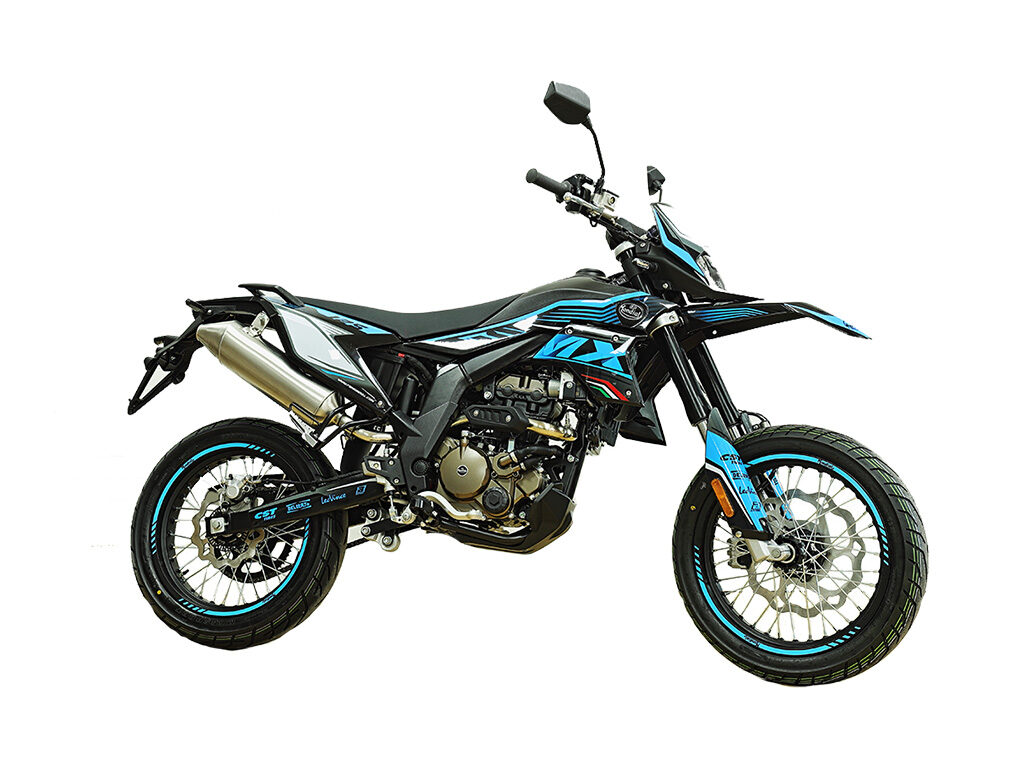

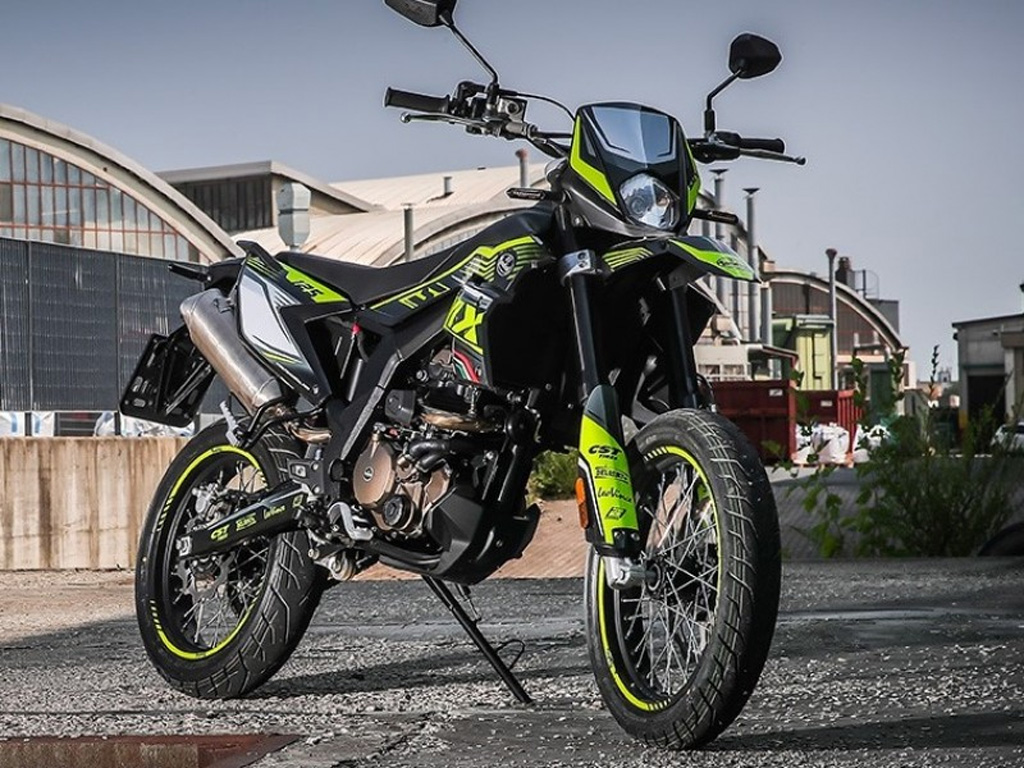

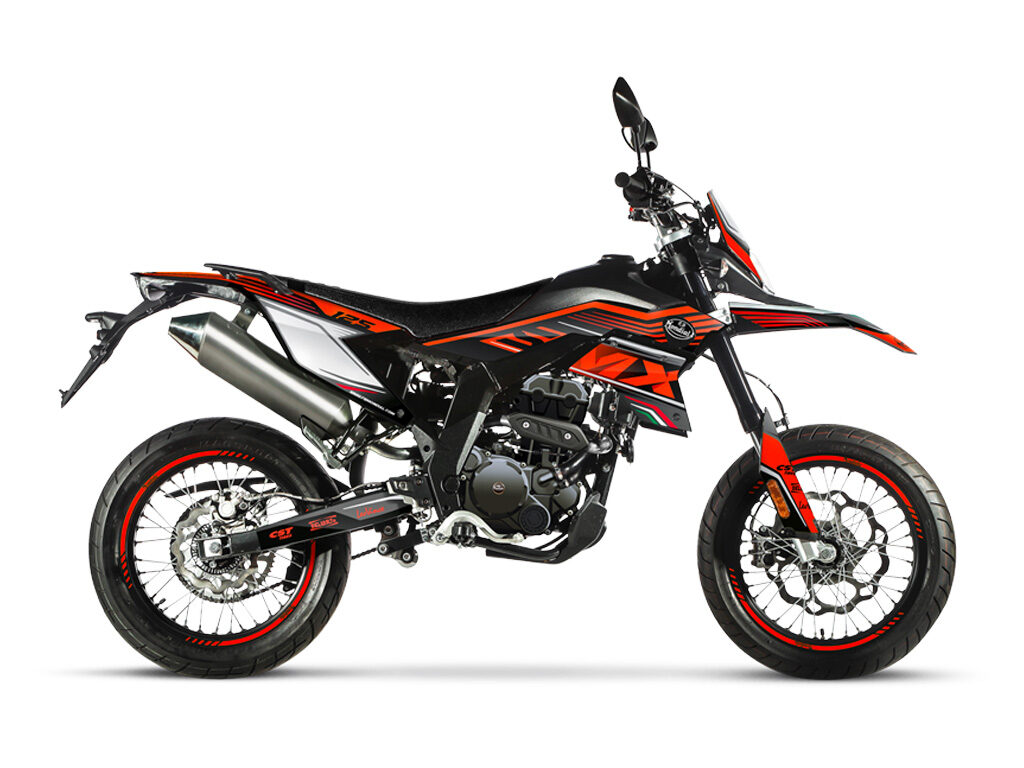

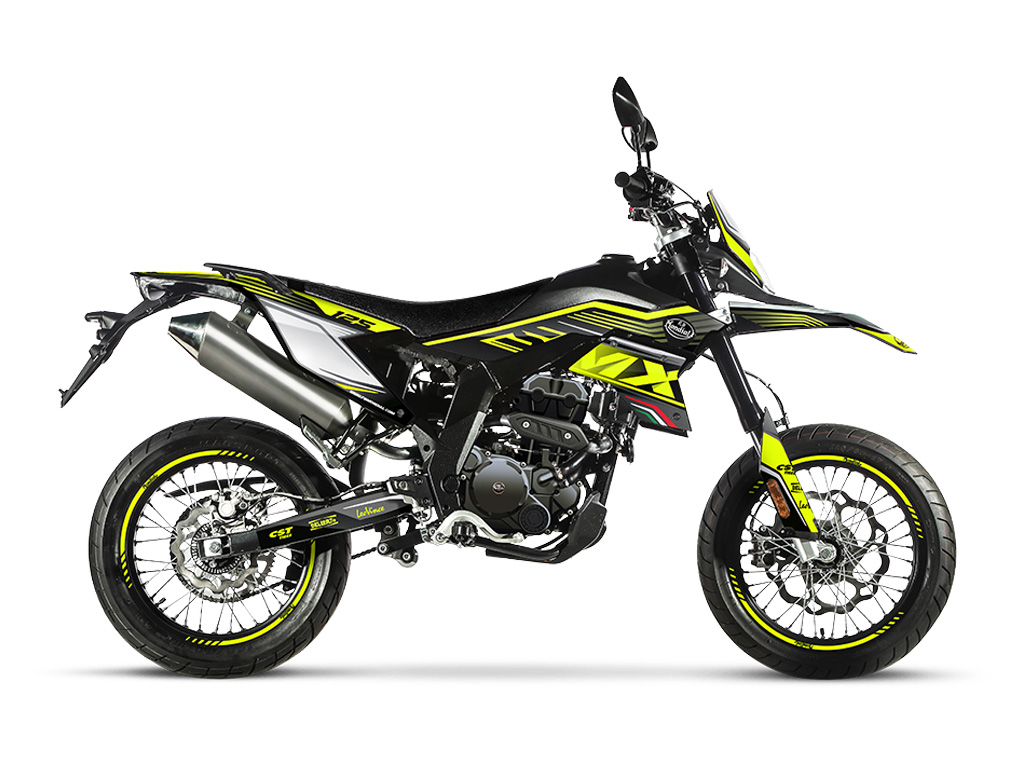

The FB Mondial SMX Motard 125 is a sleek and stylish super motard-style motorcycle with a modern and aggressive aesthetic. Its sporty graphics add to its overall appeal. This motorcycle features a double-beam steel perimeter chassis with a swingarm made of the same material. The swingarm includes linkages that provide progressiveness to the rear monoshock absorber, which boasts a long travel of 207 mm. At the front, an inverted fork with an impressive 257 mm of travel is included. The brakes on this motorcycle are also noteworthy, with two waved discs measuring 280 mm for the front and 220 mm for the rear. The callipers are floating and come in both single and double piston options. The spoked rims are 17″, and the asphalt tires have a sporty tread. The engine is a single-cylinder of Piaggio origin with liquid cooling, double camshaft distribution, and four valves. This engine boasts a six-speed gearbox and delivers close to the maximum 15 hp, complying with Euro 5 regulations. The new sporty look of the SMX Motard features a liquid-cooled 4-valve engine with electronic injection and a riding position designed for the track. The high center of gravity ensures greater agility both on the track and in city traffic. The motorcycle’s 17″ rims allow riders to learn and overcome their cornering limits. The engine is one of the few that can guarantee the maximum power that can be delivered by a 125cc motorcycle. It is a single cylinder, 4-stroke, DOHC engine with a displacement of 124cc. The bore and stroke measure 58×47 mm, and the compression ratio is 12.6:1. The engine is lubricated by a wet sump and features electronic injection. Electric starting is included, and the transmission is a six-speed gearbox. The motorcycle has a 6 L tank and can carry a maximum load of two people. The front suspension features a 40 mm USD fork with a travel of 247 mm, while the rear suspension is a monoshock with a travel of 270mm. The dry weight is 122 kg. The front brake is a two-piston floating calliper measuring 300 mm (with ABS), while the rear brake is a single-piston floating calliper measuring 220 mm (with ABS). The front wheel measures 1.85 x 21″, and the rear wheel measures 2.15 x 18″. The front tire measures 100/80 x 17″, while the rear tire measures 130/70 x 17″. The FB Mondial SMX Motard 125 is a great choice for anyone looking for a powerful and agile motorcycle that can handle a range of different riding situations.

Model Specification


  • Engine
    ENGINE TYPE

    Single Cylinder, 4 stroke, DOHC, 4 valves

    DISPLACEMENT

    124.2cc

    BORE X STROKE

    58mm x 47mm

    COMPRESSION RATIO

    12.6:1

    RATED OUTPUT

    10.0kW/9750 r/min

    MAX. TORQUE

    10.5N.m/8000 r/min

    LUBRICATION

    Wet Sump

    FUEL SUPPLY

    Electronic Fuel Injection

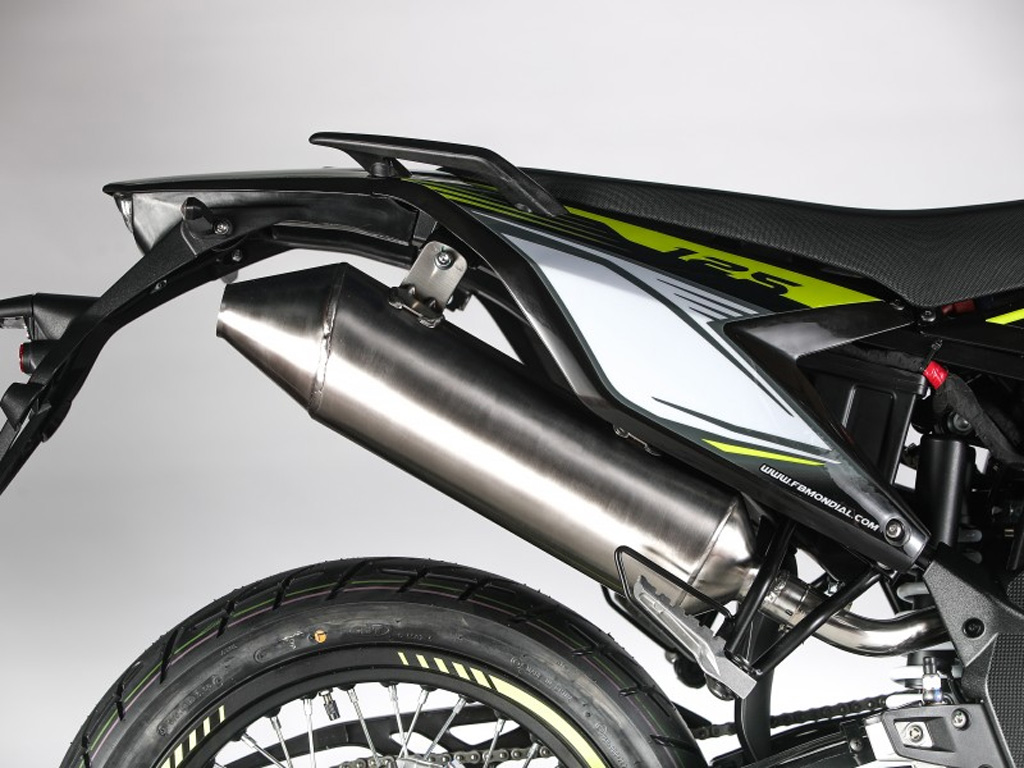

    EXHAUST SYSTEM

    Euro 5 Compliant

    CERTIFICATION

    Euro 5

    CLUTCH

    Wet multi-plate

    GEARBOX

    6 Speed

    FINAL DRIVE

    Chain

    IGNITION

    TLI

    COOLING SYSTEM

    Liquid Cooled

    BATTERY

    12V

    SPARK PLUG

    N/A

    STARTING

    Electric

  • Frame
    FRAME

  • Suspension
    FRONT SUSPENSION

    Telescopic Upsidedown Forks

    REAR SUSPENSION

    Single shock absorber

  • Brakes
    FRONT BRAKE

    Disc

    REAR BRAKE

    Disc

  • Wheels
    FRONT RIM TYPE

    Spoked

    FRONT RIM DIMENSION

    REAR RIM TYPE

    Spoked

    REAR RIM DIMENSION

    3.5 x 17 in

    FRONT TYRE

    110/80-17

    REAR TYRE

    140/70-17

  • Dimensions
    LENGTH

    2083mm

    WIDTH

    814mm

    HEIGHT

    1195mm

    GROUND CLEARANCE

    275 mm

    UNLADEN WEIGHT

    122kg

    WHEELBASE

    1443mm

    SEAT HEIGHT

    890mm

  • Performance
    USABABLE TANK VOLUME

    6 Ltr
