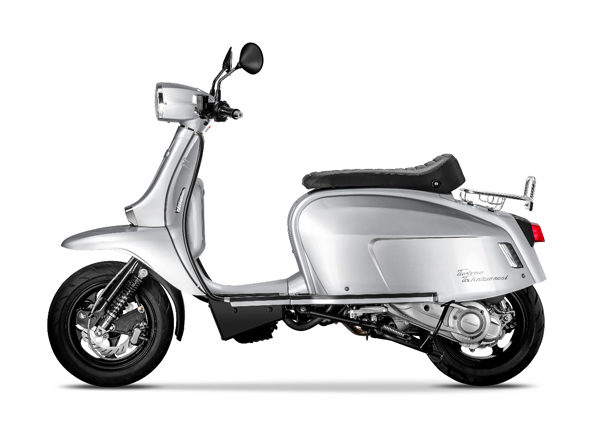

TT200

£TBC

Make an Enquiry Test Ride Enquiry Part Exchange Enquiry Apply for Finance

Model Description


Model Specification


  • Dimensions
    Dimensions

    1870(L) ×620(W) ×1115(H)

    Wheel Base

    1370mm

    Dry Weight

    137kg

    Max Load

    169kg

    Ground Clearance

    330mm

    Seat Height

    780mm

    Displacement

    181cc

    Engine Type

    Single Cylinder, Water Cooled 4T, 4V DOHC

    Bore / Stroke

    63/58mm

    Compression Ratio

    12.1:1

    Max net power, rate

    13.7/8250 RWKW

    Max net torque, rate

    15.5/6500 RWKW

    Ignition

    Inductive

    Chassis

    Space frame tubular chassis with ABS cladded bodywork.

    Front Suspension

    Double hydraulic pre load adjustable shock absorber with coil spring with anti dive linkage system.

    Rear Suspension

    Double Coil spring with adjustable preload (4 positions) hydraulic shock absorber

    Starting Method

    Electric

    Front Tyre

    Tubeless 110/70-12

    Rear Tyre

    Tubeless 110/70-12

    Brake

    (F) 220mm Disc/(R) Drum cable

    Battery

    12 volts

    Fuel Tank Capacity

    11L

    Emissions Compliance

    Complies with Euro 3 multi-directive
