Model Description


TAKE IT TO THE STREETS

The Talaria Sting is powered by an impressive 60V 38Ah lithium-ion battery which can be swapped and/or removed in seconds, allowing the possibility of a limitless range with a simple battery swap.

Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, our torque and efficiency make this bike an outstanding performer on the road or off.

TAKE IT WHEREVER, WHENEVER

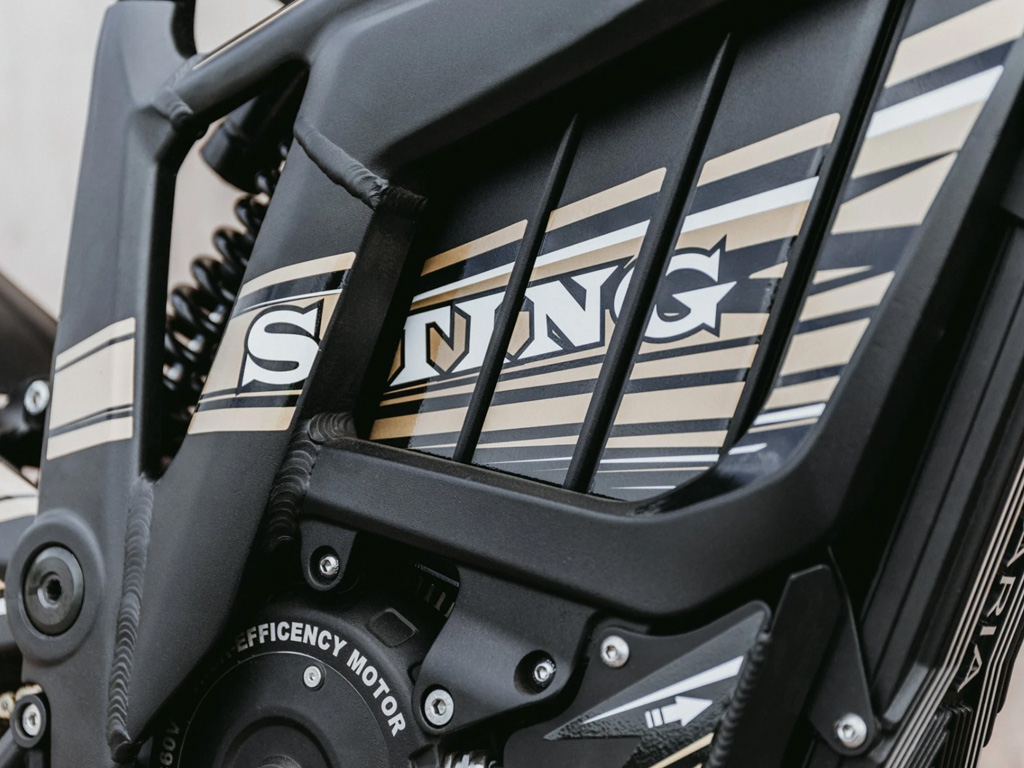

Forged for adventure and built for life, Talaria Sting is a lightweight and compact bike frame. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure, the frame is qualified to assure you a safe, fun and most importantly comfortable riding experience through even the toughest terrains.

BUILT FOR ULTIMATE PERFORMANCE

Using high-quality hardware, superb layout and smart programming, the controller enables to have an extraordinary ability for transient current impact resistance, ultra-strong anti-interference, high-precision EABS voltage, discharge current control, error inspection and correction. This guarantees to bring the rider a powerful, exciting and safe riding experience.

NIGHTRIDER

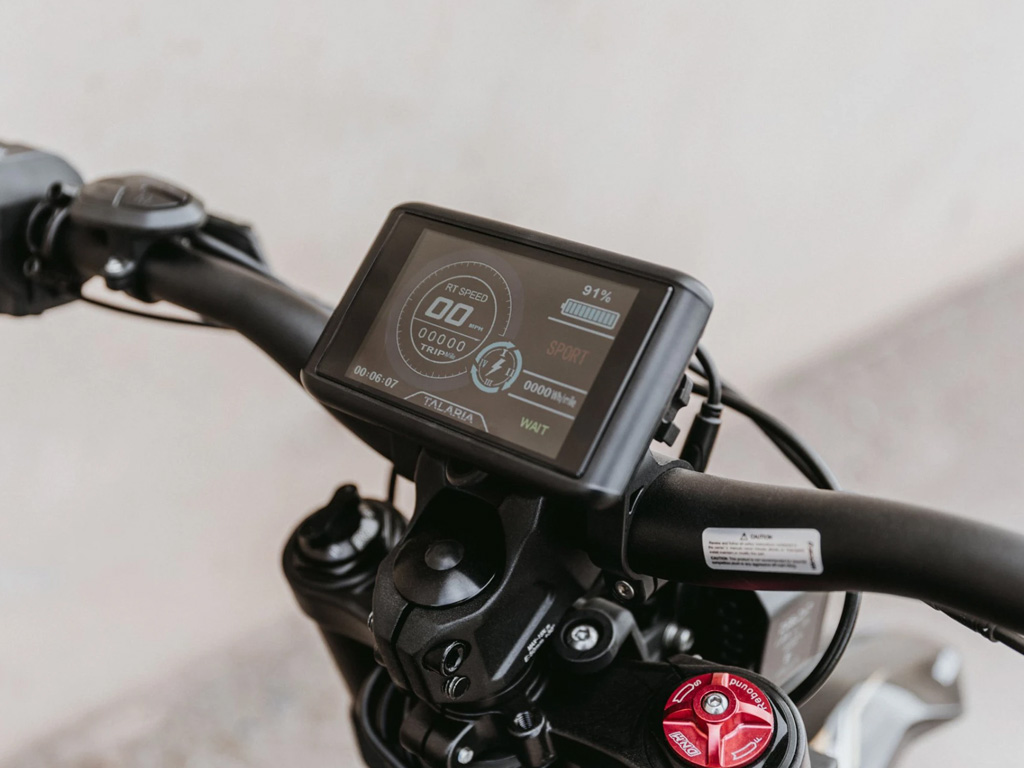

The dash features a high-contrast OLED display, which will offer riders a clear data display with low power consumption. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more.

The dash is also adjustable to allow different settings for different wheel sizes, sprocket sizes, motor regen levels, and changes between KM/H and MPH to enhance the compatibility of the bike.

Model Specification


  • Other
    Licence Required

    CBT

    Top Speed

    30 MPH (RESTRICTED)

    Range

    50 Miles

    Display

    TFT

    Charge Time

    4 Hours

    Peak Efficiency

    98.5%

  • Engine
    Battery

    60V 38.4Ah Lithium LG Cells

    Max Range

    63 Miles

    Speedometer

    TFT Digital

    Charging Time

    4 Hours

  • Suspension
    Suspension Front

    Telescopic Forks

    Suspension Rear

    Monoshock

  • Performance
    Max Power

    3700W @ 2100rpm

    Primary Drive

    Chain

    Rated Voltage

    60v (DC)

    Rated Power / Peak Power

    3700W @ 2100rpm

    Transmission

    Gearbox + Chain

    Torque

    8.5nm / 31.8nm

    Peak Efficiency

    98.5%

    Mounting Position

    Centre Frame

    Cooling Method

    Air Cooled

  • Brakes
    Brakes

    F: Hydraulic Disc, R: Hydraulic Disc

  • Wheels
    Tyres

    CST

  • Dimensions
    Max Load

    100kg

    Net Weight

    58 kg

    Forks

    Manitou (Optional) / RST - DNM

    Wheel Type

    Spoke Wheels 19x1.6

    Dimensions (LxWxH)

    1870mm x 780mm x 1040mm

    Chassis Construction Method

    Forged 8000 Tons of Pressure

    Rear Shock Absorber

    Fastace with Linkage

    Front Tyre Size

    70/100-19

    Rear Tyre Size

    80/100-19

    Chassis Surface

    Anodizing Paint Treated

    Headlight

    LED

    Tyres

    CST

    Minimum Ground Clearance

    270 mm
